Description
Product Description

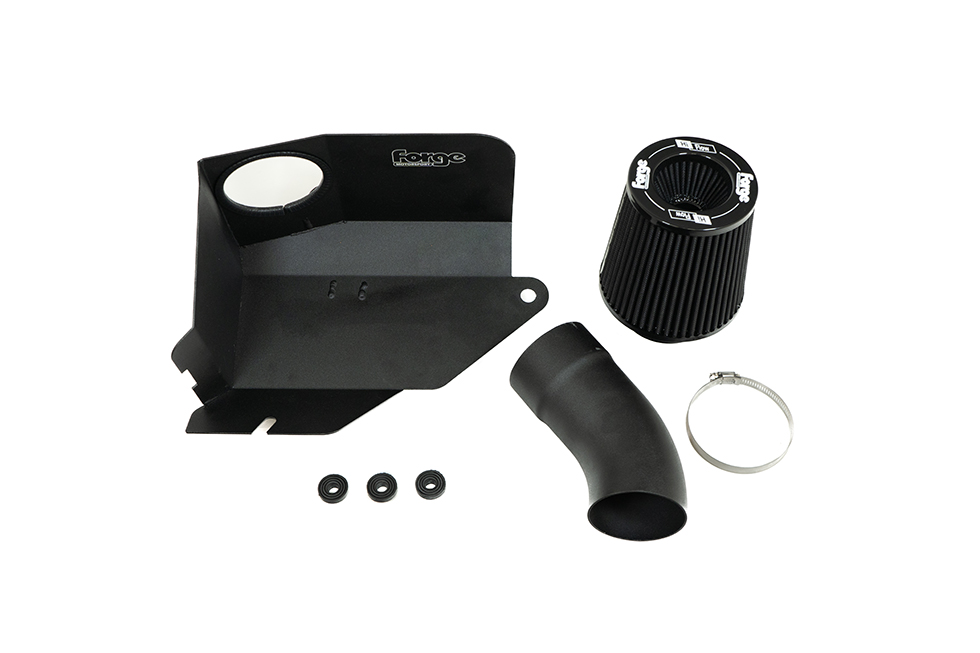

FMINDK52 is the Forge Motorsport cold air induction system for the 2022 onwards 1.0 TSI engine found in a large selection of vehicles from the VW, Audi, Skoda, and Seat range. With the highly successful FMINDK30 and FMINDK39 induction kits for the previous generation 1.0 TSI VAG vehicles there has been a large demand for Forge Motorsport to develop an improved air intake system for the latest VAG power unit.
As with all manufacturers in recent times, the need to make smaller capacity engines more powerful with better efficiency has been their top priority. To achieve these goals, the OEM design engineers must maximise the space to its fullest, which in turn creates more of a challenge for the aftermarket manufacturers and tuners to improve what is already fitted to the vehicle. Nonetheless, this has not stopped us at Forge Motorsport! Even with plenty of expertise from past developments with the previous small capacity VAG engines, this new power unit needed an extensive amount of testing time to ensure we produced a product that provided genuine improvements over the standard air box.
The CAD designed, laser cut, and precision folded heat shield is designed to form a barrier between the air inlet tract and radiant heat from the engine. It also helps duct the cold air to the air filter, to preserve low intake temperatures, which in-turn creates more power. Finished in our black textured powder coating, this creates a product with an OEM look and quality. This kit is offered with our Forge high flow, pleated, synthetic nanofiber filtration filter, which has been manufactured for optimum size and fit to the available space giving superior flow and filtration with enhanced breathing for the 1.0 turbo charged engine. A replacement can be found here.
Alternatively, there is our foam filter option available soon that has been exclusively manufactured by Pipercross. During dyno testing we tried several filter options and we found that neither filter excelled over the other with results being almost identical throughout the rev range. Both the filters offered can be oiled by the end user to prevent fine dust commonly found in hot climates from entering the inlet tract. Testing was completed using Performance Remap in Gloucester with their VTEC 4 wheel drive dynamometer. This was to ensure all our data has been achieved with results as accurately as possible by an independent tuner. You can find a replacement filter for this kit here
The dyno graph below shows torque gains at 2600RPM all the way to redline, with a gain of nearly 10NM from between 3000RPM and 3500RPM. This gain is very beneficial as it is consistently higher than stock from turbo spool up through to full boost, resulting in noticeably sharper acceleration and a more exhilarating experience for the driver, as typically this is where true power gains can be felt when behind the wheel.
The Forge Motorsport induction kit FMINDK52 includes all the necessary hardware and step by step installation instructions for any car enthusiast with basic garage tools to fit at home, in just a couple of hours!
Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.
Product Reviews
Product Reviews
Be the first to review this product
Want to leave a review?
Login
Register FREE!
Compatible Vehicles
Instructions
Induction Kit for VAG 1.0 TSI Late 2021, 2022-
Warranty
Warranty Information
The majority of Forge Motorsport products come with a limited lifetime warranty. All warranty claims must be accompanied by the original proof of purchase to enable us to help you — failure to supply this proof will result in your claim or enquiry being denied. Please note that some products are excluded from the Forge lifetime warranty and instead carry their own specific warranty terms — for example, air filters, electrical components, coil packs, carbon fibre products, and suspension kits. This page is a summary only; a full and current list of exclusions, along with their specific warranty terms, can be found on our Terms & Conditions page.
For further information, please call our customer service team on +1 865 951 7456 or email sales@forgemotorsport.com
Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos, to clean your intercooler, radiator, or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean your cooler, and thoroughly rinsed away afterwards. We recommend that you inspect your product regularly for bent and/or crushed fins — any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used. Be sure you never mix coolant types, and always use distilled water.
This warranty does not apply to any defect in the goods arising from fair wear and tear, wilful damage, accident, negligence by you or any third party, use otherwise than as recommended by the supplier, failure to follow the supplier's instructions, or any alteration or repair carried out without the supplier's approval.
This does not affect your statutory rights.
Ignition Coil Packs
Forge ignition coil packs carry a 12 month warranty against manufacturing defects (not our Lifetime Warranty), from date of purchase. As coil packs are often swapped as a full set on suspicion rather than a confirmed fault, claims must identify the specific faulty unit(s) with supporting evidence (e.g. a diagnostic misfire code) and proof of purchase. Full sets cannot be claimed without this. See full terms and conditions for details.
Electrical Components
Electrical components supplied with Forge Motorsport kits — including solenoids, wiring harnesses and looms — are covered by a 12 month warranty against manufacturing defects, rather than our standard Lifetime Warranty. This covers faulty materials or workmanship only, and does not cover damage from incorrect installation, water ingress, wear, incorrect wiring, or faults originating from your vehicle's own electrical system or other aftermarket electrical accessories. Full terms, including how to make a claim, are available in our Terms & Conditions.
Heat Management Products (Turbo Blankets and Gold Reflective Heat Barrier)
Turbo blankets and our gold reflective heat barrier are covered by a 6 month warranty against manufacturing defects (not our Lifetime Warranty), from date of purchase. Turbo blankets cure and lose flexibility over their first few heat cycles as a normal part of fitting. Once heat-cycled they should not be removed. The gold reflective heat barrier is designed for components such as engine covers, intake pipes and induction trays, not for direct contact with exhausts or turbine housings. See Terms & Conditions for details.
