Description
Product Description

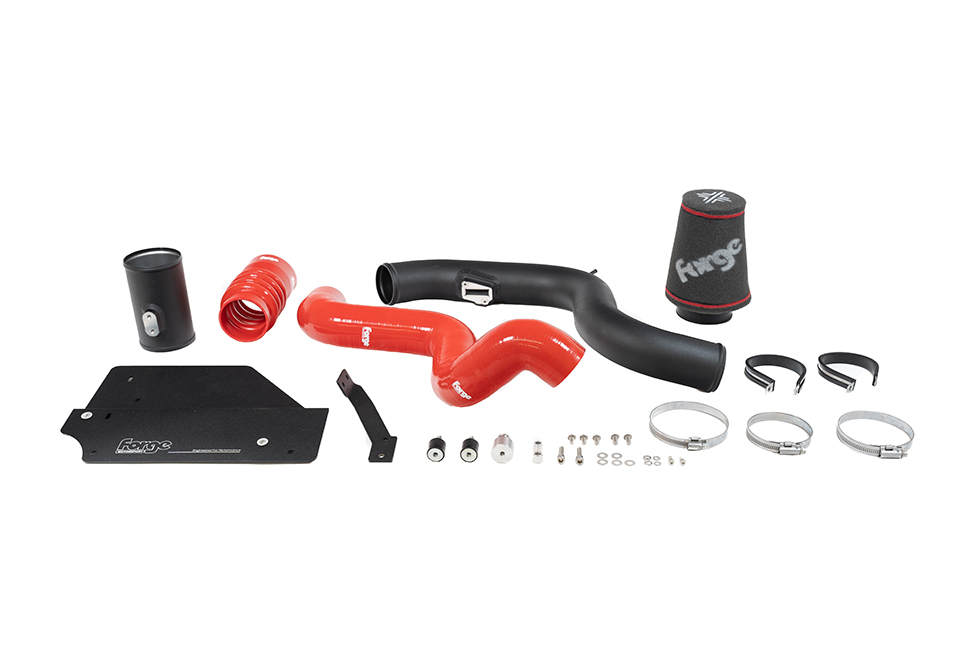

After the success of our Intake system for the Suzuki swift Sport (ZC33S), and due to popular demand, we have now developed a comprehensive induction system for the Swift Hybrid model. Over a large period of time, we have been testing and developing a product with the same project brief as all of our induction kits which are:
- Increase power and torque output (peak gains of 20BHP)
- Improve the sound characteristics of the engine note
- Improve the visual impact of the engine bay
Please note that some product pictures of FMINDK53 are fitted with products FMTIA14 (turbo inlet) and FMTUBL19 (turbo blanket).
Like the non-hybrid models the location of the original air box was susceptible to a vast amount of heat soak, which lead us to relocate the area of where the air filter/airbox should be located in the engine bay. After extensive testing, we found that relocating the air filter to a cooler area of the engine bay was key to increasing performance. The filter element itself is provided by Pipercross, and is fully serviceable or replaceable if necessary. The pipe work of the kit runs around the cold side of the engine; this again is to keep intake temperatures down as low as possible. In total, we observed intake temperatures fall from 32°C down to 27°C. These numbers will come down further still with the addition of our intercooler upgrade.
During our long testing program we were shocked to see what sort of gains were achievable from this induction kit - the proven results speak for themselves. With just FMINDK53 fitted to a stock vehicle we saw peak gains of 18.1 BHP and large gains in torque from 3300RPM through to the engines red line. These gains were achieved when the ambient temperature outside increased 3°C over the ambient temperature when testing the stock intake. As the above independent dyno graphs show, we saw increased gains again when we teamed FMINDK53 with FMTIA14 our turbo inlet adaptor. When both products were fitted to our test vehicle was saw peak gains of 20BHP and huge increases in torque fully throughout the rev range.
Alongside an addition of performance you also gain an addition of induction sound under acceleration which enhances the driving experience and gives the Suzuki 1.4 motor some added character. The sound however is not too intrusive and when driving moderately is not dissimilar to the OE intake system.
From aesthetic point of view FMINDK53 really delivers. From the mandrel bent and shaped alloy hard pipe to the laser cut and engraved engine plate bracket all finished in our textured black powder coat; this induction kit looks purposeful and shows its quality. We have redesigned the hot side boost hose to allow space for the relocated filter position and we have added a bellow design to the silicone hose to allow for engine movement and prevent any possibility of fatigue. The attention to detail has been executed to the fullest with FMINDK53 which is why its covered with our legendary lifetime warranty.
Full installation of FMINDK53 can be carried out in around 60 minutes and to do this Forge Motorsport includes a set of full colour instructions.
Complimentary Products
Please Note: In line with our policy to constantly review, revise, and improve our product range, the appearance of the product you receive may differ from the one advertised.
Product Reviews
Product Reviews
Be the first to review this product
Want to leave a review?
Login
Register FREE!
Compatible Vehicles
Instructions
Induction Kit for Suzuki Swift Hybrid ZC33 K14D
Warranty
Warranty Information
The majority of Forge Motorsport products come with a limited lifetime warranty. All warranty claims must be accompanied by the original proof of purchase to enable us to help you — failure to supply this proof will result in your claim or enquiry being denied. Please note that some products are excluded from the Forge lifetime warranty and instead carry their own specific warranty terms — for example, air filters, electrical components, coil packs, carbon fibre products, and suspension kits. This page is a summary only; a full and current list of exclusions, along with their specific warranty terms, can be found on our Terms & Conditions page.
For further information, please call our customer service team on +1 865 951 7456 or email sales@forgemotorsport.com
Do not use aggressive (acidic) car cleaning products, particularly traffic film remover solutions or shampoos, to clean your intercooler, radiator, or oil cooler. The use of these products can damage Forge Motorsport cooling systems and invalidate your warranty. These are often found at car washes. A light, warm, soapy solution (free of harsh acidic cleaning compounds) should be used to clean your cooler, and thoroughly rinsed away afterwards. We recommend that you inspect your product regularly for bent and/or crushed fins — any bent fins should be carefully straightened to allow ambient air to pass through the core face. At the time of installing your Forge radiator, an approved coolant must be used. Be sure you never mix coolant types, and always use distilled water.
This warranty does not apply to any defect in the goods arising from fair wear and tear, wilful damage, accident, negligence by you or any third party, use otherwise than as recommended by the supplier, failure to follow the supplier's instructions, or any alteration or repair carried out without the supplier's approval.
This does not affect your statutory rights.
Ignition Coil Packs
Forge ignition coil packs carry a 12 month warranty against manufacturing defects (not our Lifetime Warranty), from date of purchase. As coil packs are often swapped as a full set on suspicion rather than a confirmed fault, claims must identify the specific faulty unit(s) with supporting evidence (e.g. a diagnostic misfire code) and proof of purchase. Full sets cannot be claimed without this. See full terms and conditions for details.
Electrical Components
Electrical components supplied with Forge Motorsport kits — including solenoids, wiring harnesses and looms — are covered by a 12 month warranty against manufacturing defects, rather than our standard Lifetime Warranty. This covers faulty materials or workmanship only, and does not cover damage from incorrect installation, water ingress, wear, incorrect wiring, or faults originating from your vehicle's own electrical system or other aftermarket electrical accessories. Full terms, including how to make a claim, are available in our Terms & Conditions.
Heat Management Products (Turbo Blankets and Gold Reflective Heat Barrier)
Turbo blankets and our gold reflective heat barrier are covered by a 6 month warranty against manufacturing defects (not our Lifetime Warranty), from date of purchase. Turbo blankets cure and lose flexibility over their first few heat cycles as a normal part of fitting. Once heat-cycled they should not be removed. The gold reflective heat barrier is designed for components such as engine covers, intake pipes and induction trays, not for direct contact with exhausts or turbine housings. See Terms & Conditions for details.
